Plug Type Fixed Value Attenuator

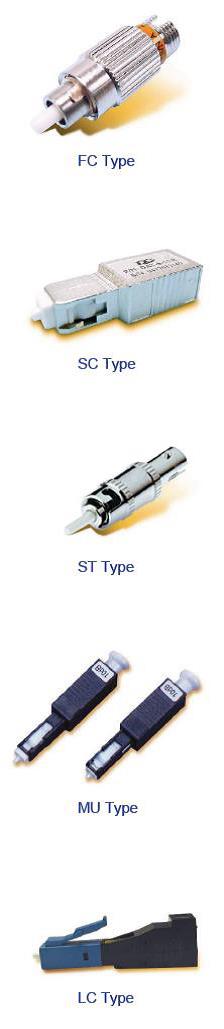

The plug-type fixed value attenuator features high power endurance and low back reflection, making it suitable for high-speed digital transmission and analog applications. Available in single-mode or multi-mode with FC, SC, ST, LC, and MU connector types.
Features:
- Low back reflection
- High power endurance
- Wavelength independent
- Low PDL
- Precise control of attenuation range
- Simple manipulation
Applications:
- Telecommunication Network
- CATV Network
- Data Communication
- Instrumentation
- Local Area Network (LAN)
General Specifications
| Single Mode | Multi Mode | ||
|---|---|---|---|
| Operating Wavelength | 1310nm and 1550nm | 850nm or 1300nm | |
| Attenuation Accuracy | 0 to 5 dB | ±1.0 dB | N/A |
| > 5 dB | ±10% of attenuation value | N/A | |
| Return Loss | UPC | > 50 dB | N/A |
| APC | > 65 dB | N/A | |
| Attenuation Tolerance | N/A | ±0.5 dB | |
| Operating Temperature | -40°C to +75°C | ||

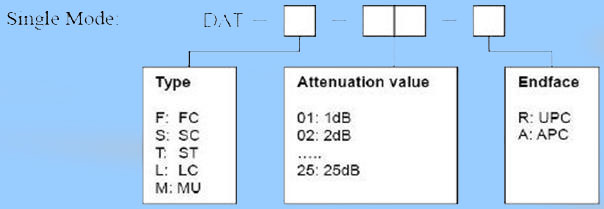

Ordering Information
