Software Defined Radio 6–38GHzDantech Digital is offering a range of high performance microwave radios using licensed frequencies in the common 6–38GHz bands. Using advanced modulation techniques, mixed SDH, PDH and IP/Ethernet traffic up to 311Mbps capacity can be transmitted reliably. Microwave radio is an established technology used by telecommunication operators and organizations where quality of service is ensured through careful frequency and link planning. Dantech Microwave Radios are distinguished by high performance, advanced radio features and flexible reconfigurable network interfaces. |
|
|
|
|
System Features
|
|
|
|
|
Applications
|
|
Software Defined Radio 6–38GHz
Dantech Microwave radios are high-performance, modern generation wireless networking platforms supporting mixed IP/Ethernet, SDH, and PDH interfaces, operating from 3.5 to 38GHz frequency bands and payloads from 16 to 311Mbps. Software-Defined Radio enables in-service upgrades, remote configuration, and low equipment costs. Dantech Microwave systems offer users maximum useful lifespan and minimal capital and operating expenditure (CAPEX and OPEX).
Advanced networking features in the Microwave IDU include scalable Ethernet capacities up to 311Mbps, SDH support and PDH switching to add/drop up to 160 E1 channels between “East”, “West” and “Front Panel” ports—radically reducing costs and increasing flexibility in a modern cellular network operator setup using ring, star, or mesh topologies. High availability configurations include 1+1 protection. Operating distances vary based on weather, especially frequency and rain intensity. Spectrum planning must consider radio signal propagation characteristics—lower frequencies travel farther, while higher frequencies offer denser links and efficient spectrum usage.
Flexible Modular System Configuration

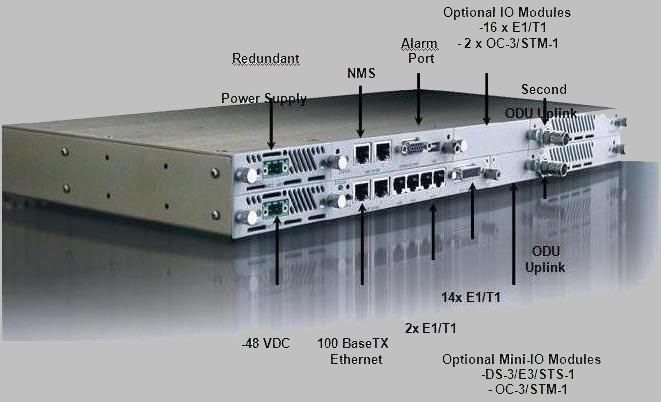

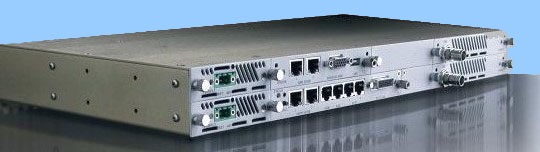

Dantech Microwave radios feature a scalable, flexible Indoor Unit platform. Indoor units can be configured with single or dual ODU uplinks for 1+1 resilient links or 2+0 repeater sites; dual redundant power options; and additional E1/T1 or SDH network modules. The modular design allows future upgrades to Gigabit Ethernet with full 311Mbps throughput. The flexible “mix and match” network interface options include:
- 1–100 Mbps full duplex Ethernet (scalable to multiple rates)
- 1–16 x E1/T1
- 1–2 x STM-1 Electrical
- 1–2 x STM-1 Optical / OC-3
- Additional 1–16 x E1/T1 (total of up to 32 x E1/T1)
- STM-1 to E1/T1 Mux/Demux in single 1RU SDIDU
- Gigabit Ethernet (scaled)
- 100 Mbps full duplex Ethernet + 2 x E1/T1
- 50 Mbps full duplex Ethernet + 16 x E1/T1
- 311 Mbps full duplex Fractional Gigabit Ethernet + 2 x E1/T1
This flexibility is ideal for modern service providers handling mixed IP and TDM traffic, such as GSM + 3G base stations with WiFi hotspot overlays. The Dantech Microwave IDU operates alongside a full range of Outdoor Units (ODUs) for different frequency bands. The ODU determines the supported band.
Frequency Band (GHz)
| Band | 6 | 7 | 8 | 11 | 13 | 15 | 18 | 23 | 26 | 28 | 32 | 38 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Frequency | 6.5– | 7.1– | 7.9– | 10.7– | 12.7– | 14.4– | 17.7– | 21.2– | 24.2– | 27.5– | 31.8– | 37.0– |
| Range | 7.1 | 7.9 | 8.5 | 11.7 | 13.3 | 15.4 | 19.7 | 23.6 | 26.5 | 29.5 | 33.4 | 40.0 |
And available capacities using ETSI-recommended modes of operation for PDH and SDH payloads:
Modulation Type Channel Bandwidth (MHz)
| 7 | 14 | 28–30 | 40–56 | |
|---|---|---|---|---|
| QPSK | 4E1 8Mbps | 8E1 16Mbps | 16E1, E3 34Mbps | – |
| 16QAM | 8E1 16Mbps | 16E1, E3 34Mbps | 2E3 68Mbps | STM-1 155.52 Mbps |
| 32QAM | 8E1 16Mbps | 16E1, E3 34Mbps | 2E3 68Mbps | STM-1 155.52 Mbps |
| 64QAM | – | – | – | STM-1 155.52 Mbps |
| 128QAM | – | – | STM-1 155.52 Mbps | 2× STM-1 311.04 Mbps |
Specifications
| System Variant | CFMW-311 |
|---|---|
| System Parameters | |
| Frequency Band | 7, 8, 10/11, 13, 15, 18, 23, 38GHz (depends on ODU) |
| Bandwidth | 7, 14, 28–38, 40–56MHz (depends on ODU) |
| Capacity | 16 up to 311Mbps Full Duplex |
| Modulation Type | BPSK, QPSK, 16 up to 256QAM |
| Rx Sensitivity | Depends on specific ODU and modulation |
| Output Power | Up to 27dm – depends on specific ODU and modulation |
| Forward Error | Trellis-Coded Modulation concatenated with Reed-Solomon Coding. |
| Correction | |
| Network Management | SNMP Enabled |
| Remote Parameters | Full range of SNMP, HTTP/Web, CLI, Serial |
| Monitoring | |
| Data and Aux | |
| Interface | |
| IP/Ethernet Interface | 100Base-T (IEEE 802.3), optional 1000Base-T Gigabit Ethernet |
| PDH | Nx E1/T1 120 ohm twisted pair (ITU G.703) |
| SDH | STM-1 120 ohm twisted pair (ITU G.703) |
| Diagnostics Port | 10/100Base-T and RS-232 |
| Antenna | |
| Antenna Type | Cassegrain type antenna with radome |
| Antenna Gain | Depends on specific antenna and frequency chosen |
| Beamwidth | |
| Power | |
| Environment | |
| DC Power | 36 to 60 Volts DC |
| Power Supply AC | 88–132 / 176–264 Volts, 50/60Hz [manual switch] |
| Power Consumption | 50–75W (depends on ODU type) |
| Power Connector | IP-65 [optional IP-68] |
| Ethernet / Power | |
| Connector | |
| Operational | -5°C to 55°C |
| Temperature (IDU) | |
| Operational | -33°C to 55°C ETS 300 019-2-4 Class 4M5 |
| Temperature (ODU) | |
| Humidity | 0 to 95%, non-condensing |
| Physical | |
| Dimensions | |
| Dimensions (IDU) | 1RU, ETSI compliant |
| Dimensions (ODU) | 267mm diameter × 89mm |
| Without Antenna | |
| Weight (IDU) | 5 kg max |
| Weight (ODU without Antenna) | 5 kg max |
| Antenna) |
| Product Code | Description |
|---|---|
| CF-MW-311-xxx | Dantech Microwave radio link including IP54-rated indoor unit, IP67-rated outdoor unit, antennas, management software, power supplies with mains -48Vdc input. Does not include RF or network cables. Frequency license required. |
Note – Precise product code depends on frequency, band, antennas, resilience, and other options.
Please contact Dantech Digital for more information.
