If your application requires precise and repeatable testing, Measurement or Reference Patch cord is required. Exceeding Telcordia’s end-face geometry standards, our reference patch cord has insertion loss as low as 0.15dB while return loss greater than 55dB. Every reference and measurement jumper will have a unique identification number. An individual interferometer report — which includes all measured figures of end-face geometric parameters, insertion loss, and return loss — will be attached to each measurement or reference jumper. Please contact us for details.

Features: Geometric property exceeds Telcordia GR-326-CC-CORE Insertion Loss < 0.15dB Return Loss > 55dB Comes with DORC quality report Available with FC, SC, ST, LC, MU connectors

Specifications:

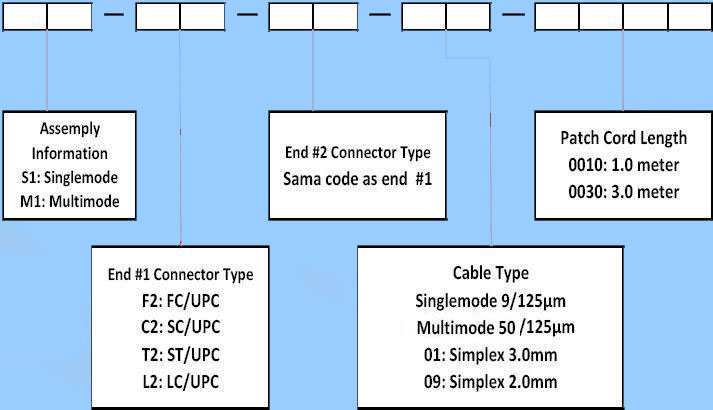

Ordering Information:

Example: S1-F2-F2-01-0050
Patch Cord:
Singlemode First End FC/UPC
Second End FC/UPC
Simplex 3.0mm
Length 5M
